Name: Prepayment Smart Meter STS Standard AMI With Alipay Payment Options Integration Solutions
Brand: Hunan Stron Smart Co., Ltd
SKU: Ste18/ste38
Price: 463.90 USD
Availability: InStock

Para casa > produtos > Medidor pagado antecipadamente esperto da eletricidade >

Prepayment Smart Meter STS Standard AMI With Alipay Payment Options Integration Solutions

Lugar de origem:

CHINA

Marca:

stron

Certificação:

STS

Número do modelo:

Ste18/ste38

Contacte-nos

Solicite um orçamento

Detalhes do produto

Pulso de disparo de tempo real:

Disponível

Comunicação com o sistema AMI:

Através do concentrador de dados

Teclado:

Apoiar

Padrão do STS:

Padrão e protocolo STS

Método de pagamento:

Prepagos

Tecnologia de Comunicação:

Módulo RF/PLC

Aplicativo:

Contar o consumo de electricidade

Dimensão do pacote:

25.08×20.19×1.62mm

Nome do produto:

Medidor pagado antecipadamente da energia

Tensão nominal:

220-240V/3*220V

Padrão:

Padrão do STS

Mostrar:

LCD

Freqüência:

50-60Hz

Garantia:

2 anos

OEM:

Apoiar

Certificado:

ISO9001; ISO14001; Padrão do STS

Comunicação:

LORA-RF apoiou

Vendendo o software:

Suportado

Recarregue o comprimento do token:

20 dígitos

Classe de proteção:

IP54

Duração da bateria:

8 anos

Intervalo atual:

(5a/80a)/(10a/100a)

Corrente inicial:

(20MA)/(30MA)

Constante de energia:

(1000IMP/KWH)/(400IMP/KWH)

Precisão da medição:

Classe 1,0

Suporte de pagamento móvel:

M-Pesa, Alipay, MTN, Airtel, etc.

Recuperação de descobertos:

Opcional diário/mensal

Duração do armazenamento de dados:

10 anos

Anti-tamperação:

Ambos com detecção de campo magnético/abertura de cobertura; Ste18-B corta o relé, Ste38-G fecha a v

Recarregue o método:

(1. Software Stronpay; 2.

Termos de pagamento e envio

Quantidade de ordem mínima

Preço

negotiated

Detalhes da embalagem

Cartão, 650 × 405 × 220 mm

Tempo de entrega

14 dias de trabalho

Termos de pagamento

T/T.

Habilidade da fonte

5000 set por mês

Produtos relacionados

Vídeo

STS Standard AMI Smart Meter com soluções de integração de opções de pagamento Alipay

Obtenha o melhor preço

IP54 50HZ Smart pagou antecipadamente a fase monofásica do medidor da eletricidade com padrão do STS

Obtenha o melhor preço

Vídeo

o medidor da energia de Digitas da fase 80A monofásica, 230V pagou antecipadamente o medidor elétrico

Obtenha o melhor preço

Vídeo

5A 4kV Smart pagou antecipadamente o medidor da eletricidade com o leitor de cartão do RFID

Obtenha o melhor preço

Contacte-nos

86-0731-22421066

Contacte agora

Descrição do produto

Product Description:

The Smart Prepaid Electricity Meter is an innovative Electric Token Meter designed to provide convenient and efficient energy measurement and payment solutions. With its advanced features and user-friendly interface, this energy meter is ideal for accurately measuring electricity consumption and managing payments in a hassle-free manner.

One of the key highlights of this Electric Token Meter is its digital display, which offers clear and easy-to-read information on electricity usage. The digital display provides real-time data on energy consumption, allowing users to monitor their usage patterns and make informed decisions to optimize their electricity usage.

With a measurement unit of 1000imp/kWh, the Smart Prepaid Electricity Meter ensures accurate and reliable measurement of electricity consumption. This high precision measurement unit helps users track their energy usage with precision, enabling them to effectively manage their electricity consumption and budget accordingly.

The Electric Token Meter also features a maximum current capacity of 100 Amps, making it suitable for a wide range of residential and commercial applications. Whether it is for a small household or a larger commercial establishment, this energy meter is designed to handle varying levels of electricity consumption with ease and efficiency.

When it comes to payment options, the Smart Prepaid Electricity Meter offers flexibility and convenience for users. Customers can easily pay for their electricity usage using mobile payment platforms such as M-PESA, Alipay, MTN, Airtel, and more. This wide range of payment options ensures that users can conveniently top up their electricity credits anytime and anywhere, without the need for physical cash transactions.

Designed for counting the electricity consumption accurately, the Smart Prepaid Electricity Meter is a reliable and efficient solution for managing energy usage. By accurately measuring electricity consumption and offering convenient payment options, this energy meter empowers users to take control of their energy usage and make informed decisions to save on electricity costs.

In conclusion, the Smart Prepaid Electricity Meter is a versatile and user-friendly Electric Token Meter that offers accurate measurement, convenient payment options, and efficient energy management capabilities. Whether for residential or commercial use, this energy meter is a reliable solution for tracking and managing electricity consumption effectively.

Product Description

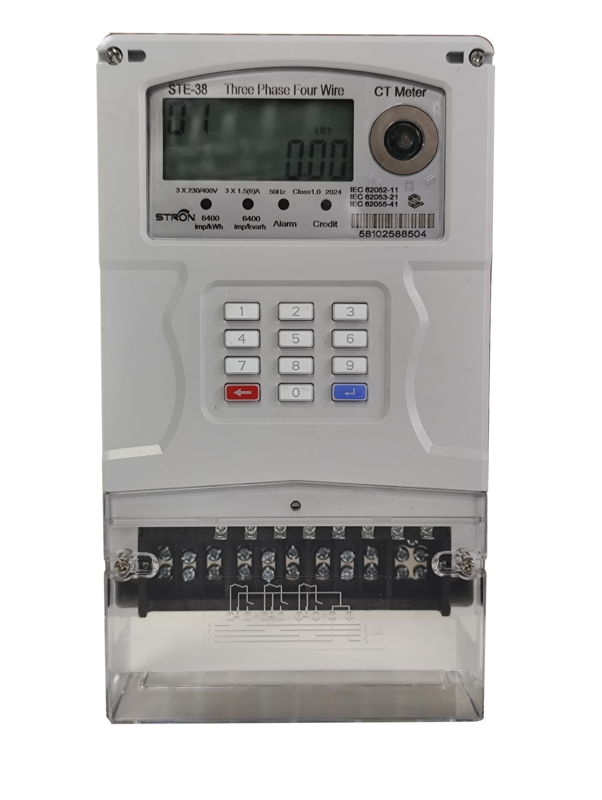

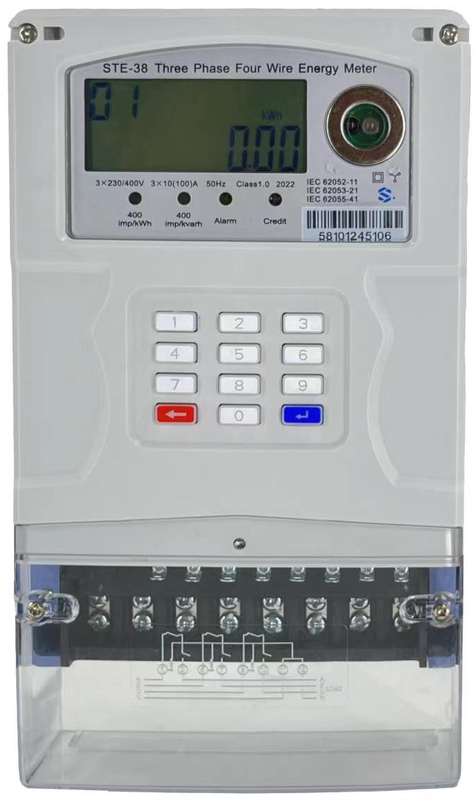

STE38-A is an STS Standard compliant, keypad type, automatically valve controlled prepaid three phase electricity meter. It can be top up with Stronpay vending software directly and communicate with AMI system via LORA-RF module.

Brief introduction
The third phase of the active electronic kilowatt-hour meter is designed for electric utilities residential to measure the
functional consumption of 50/60Hz, this instrument is developed by microelectronics technology and special large-scale integrated
circuits, and processed by SMT technology. The meter uses highly reliable, long-life electrical components, high overload, and
does not need to be recalibrated for long-term operation.

Technical Specifications (Basic Functions)
♦ Installation: Front board with three fixed installations
♦ Instrument cover: ABS flame proof with transparent window
♦ Instrument base: ABS anti-burning
♦ Terminal cover: ABS flame resistant
♦ Display: LCD display with 6+2 digits
♦ A port pulse is configured as standard The output is passive (polar).
♦ Forward and reverse functional measurements
♦ The accuracyof the meter is in accordance with the international standard IEC62053-21 & IEC62052-11

function
1. RS485 Modbus RTU protocol, baud rate: 1200 ~ 9600 bps
DLMS protocol for RS485 communication
2. Communication IR IEC62056-21 or DLT645-2007 (Clinet needs to buy HHU)
3. More display functions of smart meters:
Voltage (V); Current (A); Frequency (Hz); Active power (kW); Reactive power (Kvar), power factor (COS).
Functional capacity (kWh), non-functional capacity (Kvarh), time, date, various tariffs, etc., please contact sales

ModelDTSD866DSSD866Number of wires3 phase 4 wires3 phases 3 wiresActive accuracyClass 0.5, optional class 0.2Reaction precision
Category 2Operating voltage3x220/380V,230/400V,240/415V3X100V V, 3X230V VCurrent rangeCT5AStarting current0.4% Ibfrequency50 Hz/60
Hzpower consumption1W/10VA per phaseimpulse10,000 lb/kWhhumidity≤ 90% relative humiditytemperature-30 °C ~ + 60 °C
Multi-tariff energy meter
1. History: 12 months can be read by RS485 and displayed on the screen for 3 months
2. Real-time clock and date, able to reset via RS485 line or HHU IR
3. Use time, 4 tariffs, 8 time zones, 12 segments
4. Battery: Equipped with built-in lithium battery, it can be used for at least 10 years.

The multi-function has all the features of a multi-tariff, with additional no-function consumption and power

Main Features

1. Disconnects on overload and no credit.

2. Programmable load limit and low credit warning.

3. Detection and record tamper event such as cover open, reversal, black-out, etc.

4. Easy access to 12 months historical consumption dataand last 5 token entered.

5. Maximum demand measurement.

6. Detailed power information such as phase voltage, current, total active power, reactive power, apparent power, total power factor, power grid frequency.
7. Ethernet/PLC/ RF/ GPRS/GSM communication with a head-end AMR/AMI server.

8. Time of Use (TOU) / 3 tariffs /8 time divisions /100 holidays.

Meter Dimensions

Meter Box and Circuit Breaker

Stronpay Vending Software

Operation of vending software

1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully

API-Stronpay vending software can easily integrated with local mobile payment via API

AMI System

Company Introduction

Hunan Stron Smart Co., Ltd is founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.

Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, while a number of its products and technologies have won the national, provincial and municipal awards.
